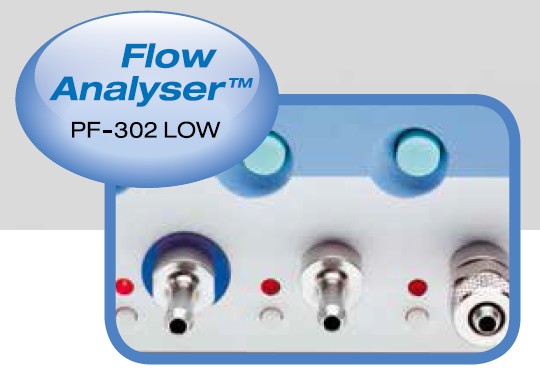

PF-302 LOW
ㆍ상품코드 : G5257A4D0B4EFB



PF-302 LOW : FlowAnalyser Brochure



Gas FlowAnalyser

red line.jpg



Features Flow Analyser PF-302 LOW

Includes an additional sensor measuring minimal pressures up to 5 mbar





Bidirectional Flow Measurement

Two measuring canals evaluate flow, pressure, temperature, humidity and O2 concentration of all types of ventilators and anaesthesia machines.





Additional Vacuum Sensor

The FlowAnalyser PF-301 VAC model includes an additional sensor for vacuum measurements up to 5 bar.







Pressure Measurements

All pressure information included with up to 6 different pressure sensors.







Respiratory Parameters

16 respiratory parameters can be calculated including PEEP, Vti and compliance.





FlowLab™ Software

The Software package for real-time monitoring and reporting. Selecting your preferred display mode (Panels, Trending or Numerics) with a few simple mouse clicks is easy.





Gas Standards

13 gas standards and 10 gas types adapt the FlowAnalyser to the tested respirator or anaesthesia device.







Data Storage

Memorize internally all measured and respiratory parameters in order to simplify the testing procedure.







RT-200 Emulation Mode

The new FlowAnalyser RT-200 emulation mode simulates the RT-200 operating mode while offering a contemporary replacement for the flowmeter RT-200.





EasyCal™

The fastest and easiest calibration service for biomedical testing devices in the world.







LED Rapid Access Mode

Connection details as well as fast measurements at the tip of your fingers.









Battery Operation

Convenient and independent work with the FlowAnalyser when you are on the go.





USB, RS-232 and External Trigger

The FlowAnalyser communicates with your test software and ventilator.



  Accessories of PF-301 VAC



MultiGasAnalyser™ OR-703

The MultiGasAnalyser OR-703 measures all anaesthesia and breathing gases and is the smallest multi-gas sensor in the world. It includes the most modern Microsystems technology and has a direct data interface with the FlowAnalyser. Key Features include complete data collection and test reports. Together with the FlowAnalyser, it becomes a dream team in testing ventilators or anaesthesia machines.





SmartLung™ Adult & SmartLung™ Infant test lungs

The most intelligent and cost-effective test lungs that safely tests ventilators and anaesthesia machines for function and precision. Variable patient parameters such as resistance, compliance or airway leakage can all be adjusted independently. The SmartLung is also extremely handy and user-friendly.



FlowAnalyser™ Adapter-Set

The Adapter-Set assists in connecting the test object to the FlowAnalyser. The smallest possible dead space, as well as minor differences in the cross-section dimension of the flow current help increase measurement accuracy. This Adapter-Set is included, free of charge, in your Flowanalyser purchase.
